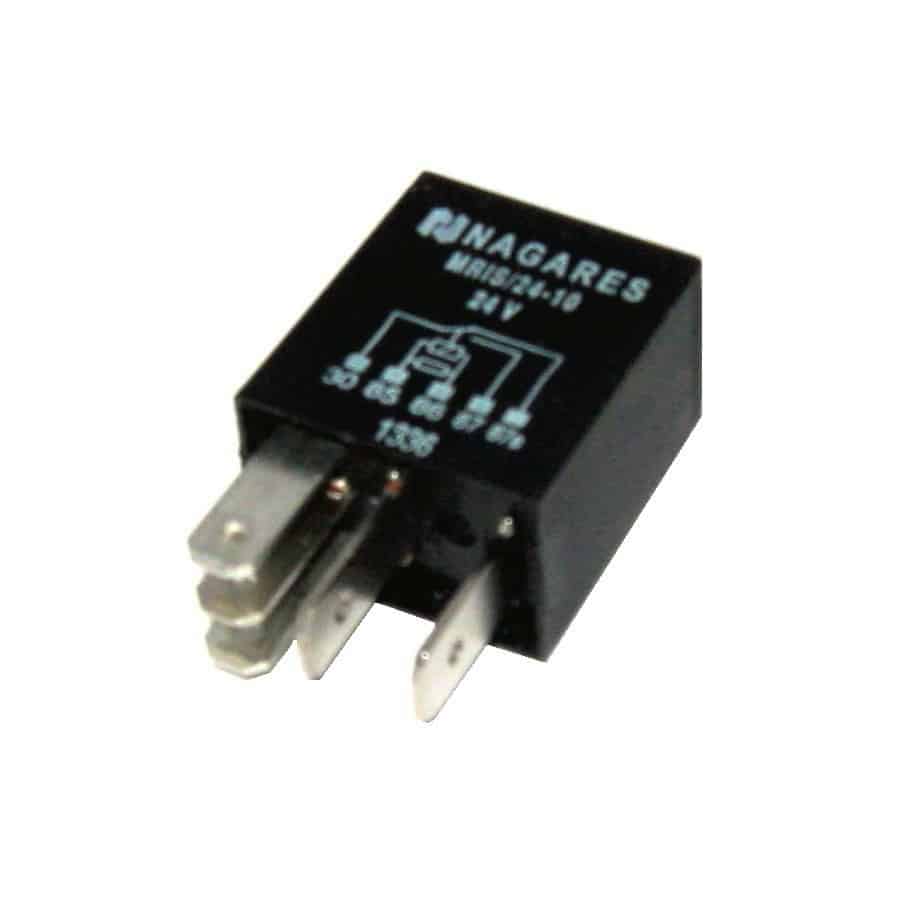

GENERAL APPLICATION MICRO RELAY 24V 15/6A

OE quality micro multipurpose relay for universal applications

SPECS:
Application: Multipurpose

Type: Changeover
Volts: 24VDC
Current: 15/6A
Connections: 5
Mounting bracket: No
Resistor: Yes
Diode: No
Note:

PIN LAYOUT:
PIN CONNECTION
85 Coil
86 Coil
30 12VDC
87 Output when ON
87a Output when OFF
