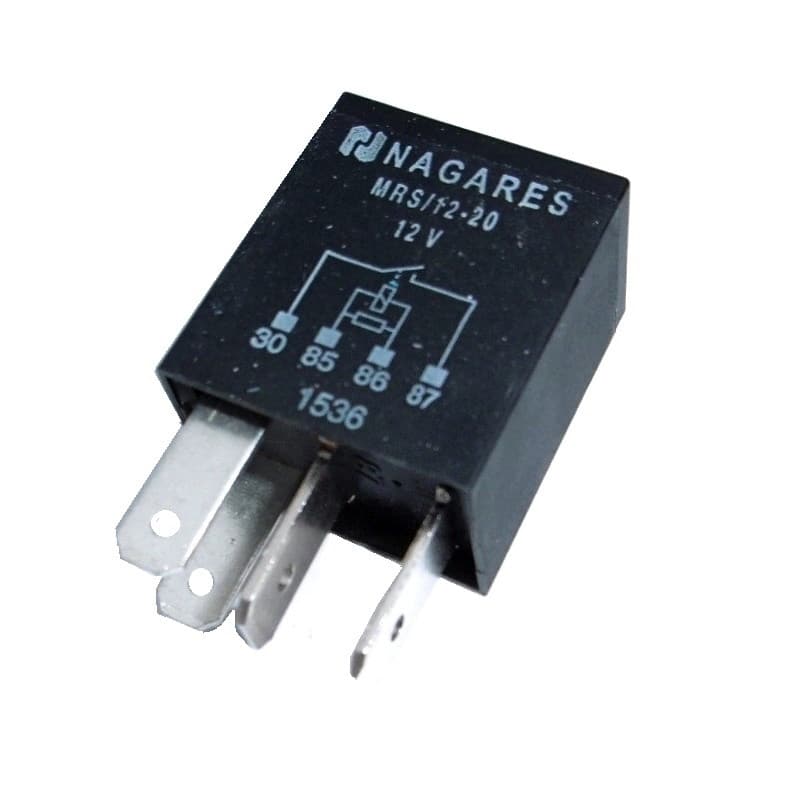

GENERAL APPLICATION MICRO RELAY 12V 20A

OE quality multipurpose micro relay with for universal applications

SPECS:
Application: Multipurpose

Type: Normally open
Volts: 12VDC
Current: 20A
Connections: 4
Mounting bracket: No
Resistor: Yes
Diode: No
Note:

PIN LAYOUT:
PIN CONNECTION
85 Relay coil
86 Relay coil
30 12VDC
87 Output
