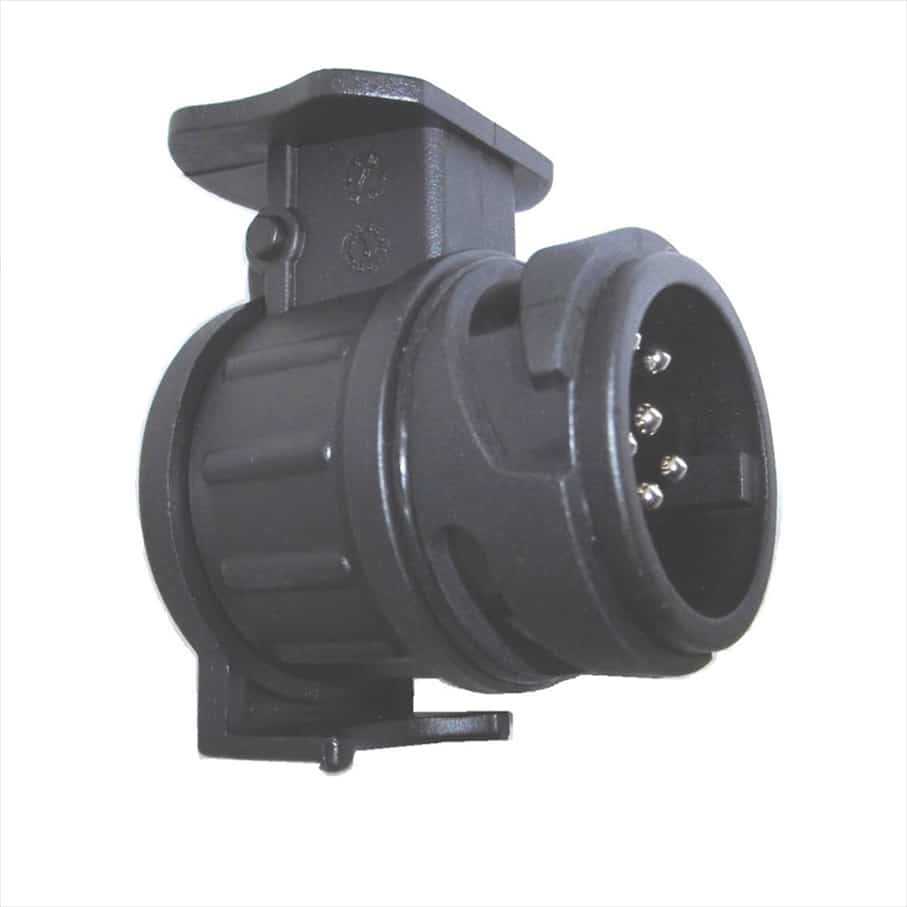

PLUG ADAPTER 13P TO 7P

Plug adapter for electrical connection between vehicles and trailers or caravans. Provides protection against dust and water

SPECS:
Material: Plastic / Brass
One side: 13P male
Other side: 7P female
Voltage: 12-24VDC
Wiring:
ISO1724 12N –  – 7pins –

1 – L – TURN LEFT – YELLOW

2 – 54G – FOG LIGHT – BLUE

3 – 31 – GROUND – WHITE

4 – R – TURN RIGHT – GREEN

5 – 58R – TAIL RIGHT – BROWN

6 – 54 – BRAKE – RED

7 – 58L – TAIL LEFT – BLACK

ISO11446 –  – 13pins –

1 – L – TURN LEFT – YELLOW

2 – 54G – FOG LIGHT – BLUE

3 – 31 – GROUND 1-8 – WHITE

4 – R – TURN RIGHT – GREEN

5 – 58R – TAIL RIGHT – BROWN

6 – 54 – BRAKE – RED

7 – 58L – TAIL LEFT – BLACK

8 –  – REVERSE LIGHT – PINK

9 – 30 – 12V + BATTERY – ORANGE

10 – 15 – 12V + IGNITION – GREY

11 – 31 – GROUND FOR PIN 10 – BLACK/ WHITE

12 –  – SPARE – BLUE/ WHITE

13 – 31 – GROUND FOR PIN 9 – RED/ WHITE
