EBS PLUG x15
ΒΥΣΜΑ ΚΑΡΟΤΣΑΣ ΠΛΑΣΤΙΚΟ {15p} 24V€22.50
| Part Number: | CCPXXUN055 |
| Replacing References: | CT2090 ER13 |
| PDF: |
In stock
Description

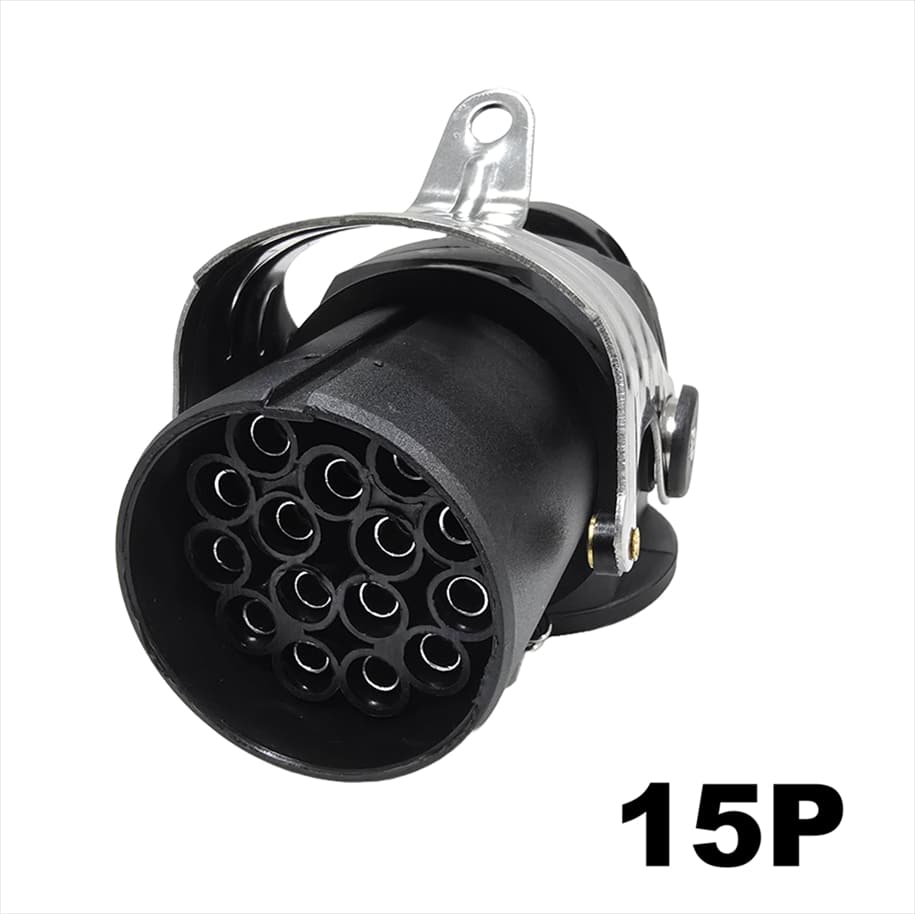

EBS plug for trucks
SPECS:
Poles: 15
Type: Male EBS
Material: Plastic
Voltage: 12-24V
Pins: 12×1.5 mm² + 3×2.5mm²
Wiring:
ISO12098 – – 15pins –
|
PIN |
COLOUR |
FUNCTION |
|
1 |
Yellow |
Indicator Left |
|
2 |
Green |
Indicator Right |
|
3 |
Blue |
Rear fog lamp |
|
4 |
White |
Earth pins 1-3 & 5-12 |
|
5 |
Black |
Left position lamp |
|
6 |
Brown |
Right position lamp |
|
7 |
Red |
Stop lamp |
|
8 |
Pink |
Reversing lamp |
|
9 |
Orange |
Battery 24V |
|
10 |
Grey |
Brake wear indicator |
|
11 |
Black/White |
Handbrake indicator |
|
12 |
Blue/White |
Lift axle |
|
13 |
Red/White |
Earth pins 14-15 |
|
14 |
Green/White |
CAN bus High |
|
15 |
Brown/White |
CAN bus Low |
